Hydraulic DIN Fittings 1C9/1D9 90° ELBOW FITTINGS
Hydraulic DIN Fittings 1C9/1D9 90° ELBOW FITTINGS supplied for hydraulic line connection, machinery service, repair kits, and OEM sourcing. Chengcai Tools can match sizes, threads, materials, and batch requirements based on your drawing or sample.
Part No.1C9/1D9
Product TypeDIN / Metric Tube Fittings
PriceContact for quote
Standard / Model1C9/1D9
Specification TableAvailable below
Available Sizes20 variants
Technical Specifications

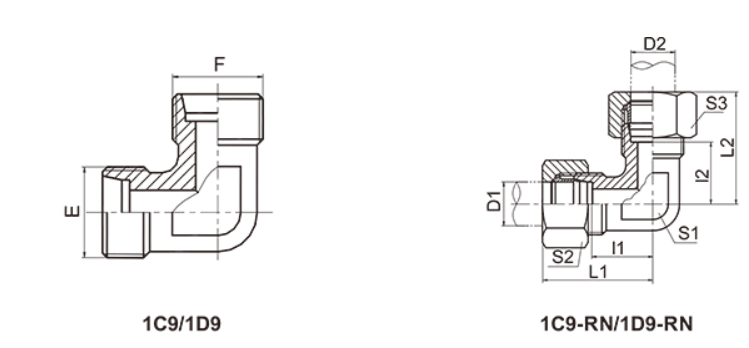

Dimensional Drawing
Reference diagram for matching the specification table below. Confirm final dimensions, thread standard, and material before production or purchase.
- Use table columns such as E, F, D, L, S and MPa with this drawing.
- Send drawings or samples if you need custom matching.
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||
| E | F | D1 | D2 | l1,l2 | L1,L2 | S1 | S2,S3 | ||
| 1C9-12 | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 12 | 14 | 31.5 Light series L |
| 1C9-14 | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 29 | 12 | 17 | |
| 1C9-16 | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 30 | 14 | 19 | |
| 1C9-18 | M18X1.5 | M18X1.5 | 12 | 12 | 17 | 32 | 17 | 22 | |
| 1C9-22 | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 36 | 19 | 27 | |
| 1C9-26 | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 40 | 24 | 32 | |
| 1C9-30 | M30X2 | M30X2 | 22 | 22 | 27.5 | 44 | 27 | 36 | 16 Light series L |
| 1C9-36 | M36X2 | M36X2 | 28 | 28 | 30.5 | 47 | 36 | 41 | |
| 1C9-45 | M45X2 | M45X2 | 35 | 35 | 34.5 | 56 | 41 | 50 | |
| 1C9-52 | M52X2 | M52X2 | 42 | 42 | 40 | 63 | 50 | 60 | |
| 1D9-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 12 | 17 | 63 Weight series S |
| 1D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 14 | 19 | |
| 1D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 17 | 22 | |
| 1D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 17 | 24 | |
| 1D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 40 | 19 | 27 | |
| 1D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 24 | 30 | 40 Weight series S |
| 1D9-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 27 | 36 | |
| 1D9-36 | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 36 | 46 | |
| 1D9-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 41 | 50 | 31.5 Weight seriesS |
| 1D9-52 | M52X2 | M52X2 | 38 | 38 | 41 | 72 | 50 | 60 |
Inquiry Notes
Please send part number, thread standard, quantity, material requirement, surface treatment, and target delivery time. Chengcai Tools will confirm pricing and alternatives by quotation.
